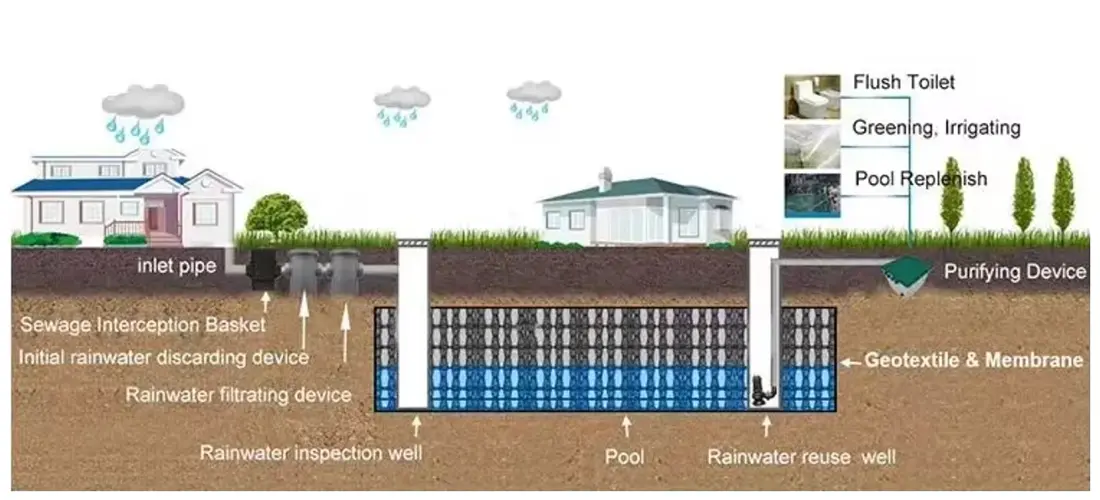

A Rainwater Collection System, or Rainwater Harvesting System, is designed to collect, store, treat, and reuse rainwater.
Rainwater Collection Module: This system eliminates pollutants and debris from the initial rainwater runoff. It typically includes devices such as dirt traps and diversion filters to remove larger particles and contaminants.
Rainwater Collection Module: After the initial pretreatment, the rainwater is stored in a storage system, often consisting of rainwater modules or SMC fiberglass tanks. These systems can store large volumes of water and provide a steady supply for later use.
Rainwater Collection Module: To further improve water quality, the stored rainwater undergoes purification processes such as filtration and disinfection. This removes finer particles, harmful bacteria, and other impurities, ensuring the water is safe for various uses.
Rainwater Collection Module: This system monitors and controls the entire rainwater collection process. It ensures that the system operates efficiently and can adjust operations based on real-time data, such as water levels in storage tanks.
Rainwater Collection Module: The treated rainwater is then distributed for various non-potable uses, including irrigation, landscape watering, car washing, road cleaning, cooling water replenishment, and toilet flushing.
Model Number | Rainwater Collection Module |
Material | PP |
Function | Rainwater collection |
Certificate | ISO |
Color | Black or customerized |
Single package size | 20X20X5 cm |
Single gross weight | 1.000 kg |
Rainwater Collection Moduleare widely applicable in various settings, including municipal public roads, plazas, parks, urban residential areas, schools, industrial parks, and factories. They are particularly effective in areas with annual rainfall exceeding 400mm, where the economic benefits of rainwater harvesting are more pronounced.

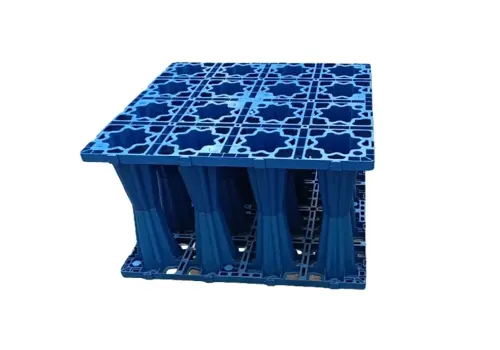

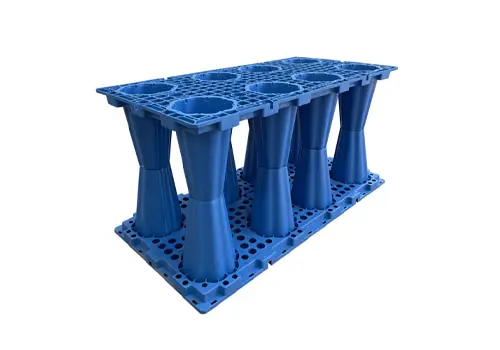

Rainwater Harvesting Module is a new type of product that can be used to store water but does not take up much space; it has superb pressure-bearing capacity; 95% hollow space allows for more efficient water storage.
The use of tarpaulin or geotextile can complete the water storage, discharge, but also need to set up a good inlet pipe, outlet pipe, pump location and inspection wells within the structure.
Rainwater Harvesting PP modular pool rainwater comprehensive utilization of national building standards design atlas is a comprehensive consideration of rainwater runoff pollution control, urban flood control and ecological environment improvement requirements.
Establishment includes roof rainwater collection and storage system, rainwater interception and infiltration system, ecological community rainwater utilization system. The rainwater is used as a technical means for spraying pavement, irrigating green space, storing water for toilet flushing and other miscellaneous urban water.
Features of Rainwater Harvesting
