Geobag For Shoreline Protection
Engineered woven geotextile geobags for coastal and shoreline protection and feature a reinforced heavy duty colored non-woven fabric for additional protection and aesthetics.
Description
Geobags is a tubular bag made of high-strength geotextile, High-strength polypropylene (PP) or polyester (PET) geotextile, with good tensile, tear and UV resistance.

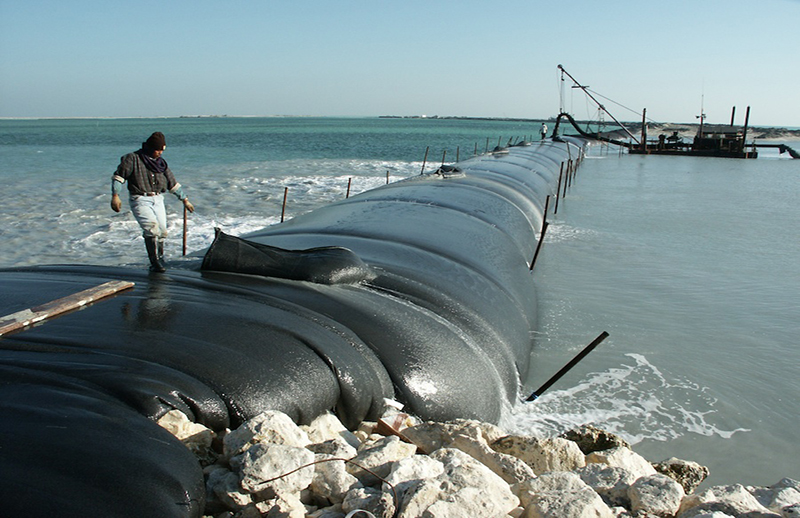

Geobags are large containment systems in tubular forms made from high strength PP/PET Woven Geo-textile. Geo-textile tubes are filled by the hydraulic pumping of local soil into the prefabricated Geo-textile tube. This leads to a flexible, monolithic, continuous structure that is highly resistant to water currents. Sand is widely used as the soil in-fill material because of its low comprehensibility but other hydraulic pumped soil types can also be used.
Geobag geobag is widely used in water conservancy, environmental protection, marine engineering and other fieldsGeobags is a bag made of High-Performance Polypropylene Mesh monofilament woven into bag fabric. Geobags has High Strength, Low Elongation, High Permeability, High UV resistance,Acid and Alkali Resistance, Anti-Microbial Erosion Properties, etc.
Geobag are made up of Geo-textiles that has fine pores so that water can easily exit and Soil will remain infill in Geobag during the hydraulic filling stage. The Geo-textile has high tensile strength to enable it to resist the tensile stresses occurring during hydraulic filling and main.
Geobag Features
1. Material
High-strength geotextile: usually made of high-strength synthetic fibers such as polypropylene (PP) or polyester (PET), with good tensile, tear and UV resistance.
2. Geobag geotextile tube of Structure
Tubular design: cylindrical, both ends can be closed, and the length and diameter are customized according to project requirements.
Multi-layer structure: Some geotextile tube bags adopt multi-layer design to enhance their strength and filtration performance.
3. Geobag of Function

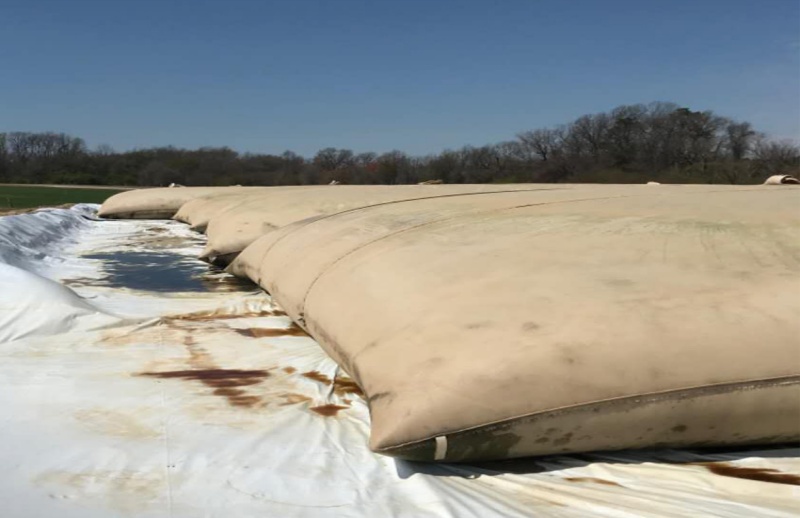

Filtration and drainage: allows water to pass through while intercepting solid particles, often used for sludge dewatering.
Protection and reinforcement: used for protection and reinforcement of projects such as dams and coastlines.
Environmental protection and ecological restoration: used for pollution control and ecological restoration, such as river dredging, wetland restoration, etc.
Specifications
| UNIT | TEST STANDARD | UNIT TEST STANDARD | ||||||||||
| DK70×95B | DK70×95 | DK120×120 | DK200×200 | DK200×200B | DK380 | DK580 | DK380PPi | DK580PPi | ||||
| Breaking strength | vertical | KN/m | ISO 10319-2015 |
85 | 85 | 130 | 220 | 220 | 70 | 85 | 70 | 85 |
| weft | KN/m | 105 | 115 | 120 | 200 | 210 | 60 | 80 | 80 | 105 | ||
| Elongation at break | vertical | % | 13 | 13 | 12 | 13 | 13 | 12 | 12 | 13 | 13 | |
| weft | % | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 9 | 9 | ||
| Breaking strength at 2% elongation | vertical | KN/m | 14 | 14 | 20 | 12 | 10 | 14 | 15 | 9 | 8 | |
| Breaking strength at 5% elongation | weft | KN/m | 38 | 38 | 80 | 95 | 88 | 38 | 42 | 26.5 | 21 | |
| Weight | g/m2 | 430 | 450 | 540 | 850 | 870 | 285 | 385 | 340 | 420 | ||
| Joint tensile strength | KN/m | ISO 10321-2008 | 70 | 90 | 100 | 170 | 180 | |||||
| CBR Puncture Strength（CBR） | KN |
ASTM D6241 |
8 | 9 | 15 | 20 | 23 | 7 | 10 | 8.5 | 10 | |
| Dynamic perforation | mm | 10 | 8 | 10 | 8 | 8 | ||||||
| Equivalent aperture（O90） | mm |
ISO 12956 |
0.5 | 0.45 | 0.45 | 0.45 | 0.35 | 0.48 | 0.45 | 0.48 | 0.47 | |
| Permeability（Q50） | L/m2/s |
ISO 12956 |
50 | 35 | 14 | 18 | 15 | 35 | 42 | 58 | 58 | |
| UV Resistance（500 hours strong preservation rate） | % | ASTM D4355-2014 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Applications

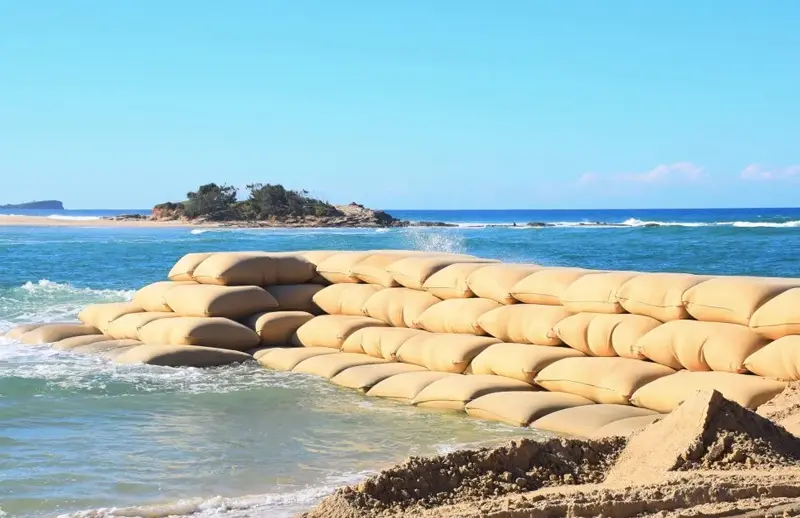

Geobags for seawalls and coastal protection create a synthetic barrier for your shoreline and beach use to help control erosion.
These barriers, often referred to as breakwater Geobags, are the first line of defense against the action of waves and tides.
When waves hit beaches and shorelines, they impact seawalls, limiting exposure to beaches and dunes.

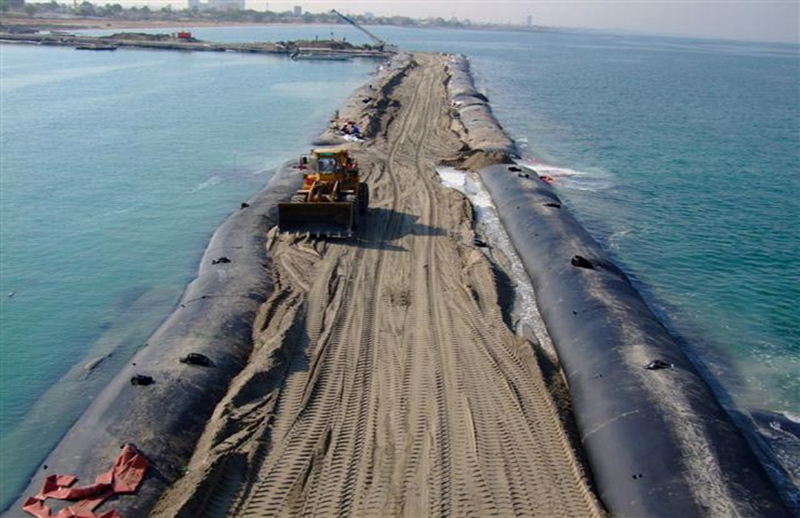

Geobags seawalls provide coastal defense for canals, bays and other areas, minimizing the erosive effects of waves and helping protect your sand/shoreline.
Our Geobags for coastal protection are available in a variety of lengths and circumferences to suit your erosion control application.
