Product Name :Cement Canvas Concrete Fabric
Weight :15kg
Length:30m
Width :1-3m
Cement Canvas Concrete Fabric is a flexible fabric product made by densely pouring inorganic powder into a three-dimensional fabric with one side sparsely woven and one side densely woven, with a thickness of 5~15mm and a width of 1~2m, and glued and packaged on the sparsely woven surface. When in use, as long as the densely woven surface of this product is sprayed with water (it can be rainwater or even seawater), it can harden and form a waterproof, fire-resistant and durable protective layer on the surface of the substrate. The compressive strength of the product can reach 25-40MPa, the tensile strength can reach 0.6-1.0MPa, and the ultimate tensile elongation can reach 20%.
Cement Canvas Concrete Fabric can be used for slope protection (such as slope protection or retaining walls), pipeline protection (such as underwater pipelines or inner walls of culverts), sound barriers, tunnel lining, roof protection, trench lining, decorative wall panels, shelter reinforcement, and the production of various buildings And industrial artwork. Therefore, it has a wide range of application prospects in the fields of engineering repair and construction, railway engineering, highway engineering, petrochemical industry, water conservancy engineering, mining engineering, disaster relief tents, and military protection engineering.
Compared with traditional cement-based composite materials, this product is characterized by no need for mixing, pouring, and vibrating process, fast setting and hardening (setting time: 15 minutes to 4 hours), and fast construction speed (3 people can pave 200 square meters per hour) , Low construction cost, easy cutting, splicing, anchoring, and low construction environmental pollution.
Model NO. | 6mm 8mm 10mm 15mm |
Application | Roads&Railways&AirportsProject, Water Conservancy Project, Drainage Ditch |
Classification | Composite by Cement Mix and Fabric |
Type | Compostite by Cement Mix and Fabric |
Structure | 3D Composite |
Width | 2m |
Density | 1300~1600 Kg/M3 |
Specification | 2m x50m;2mx25m |
Origin | China |
Production Capacity | 500000 Sqm/Year |
Density ASTM C 1185 | 1300~1600 kg/m |
Felxural strength ASTM C 1185 | >15 Mpa |
Compressive strength ASTM C109 | >30 Mpa |
Durable service life | > 30 Years |
Cement Canvas Concrete Fabric is typically used to replace conventional concrete for various erosion control and weed suppression applications. Typical examples include canal/ ditch lining, slope protection, berm lining, remediation works, culvert lining, gabion covering, and pipe protection.

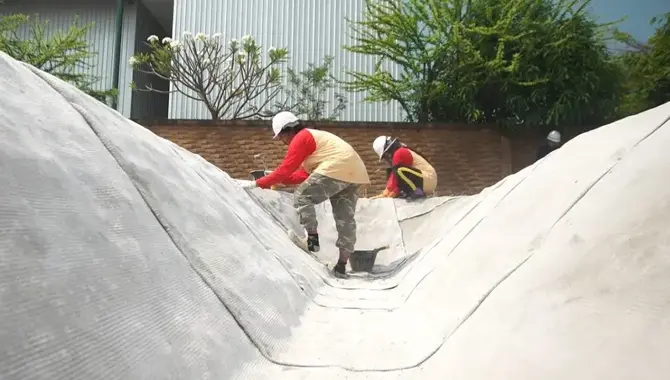

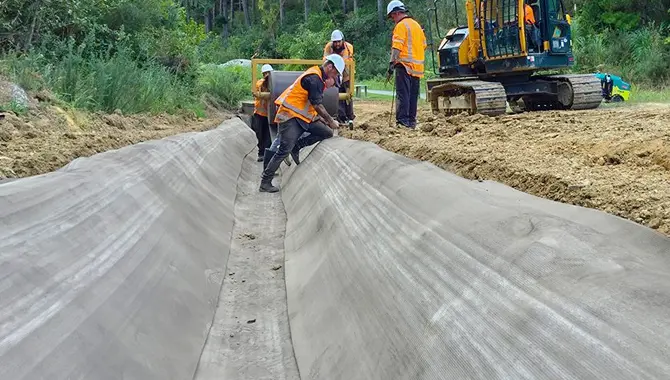

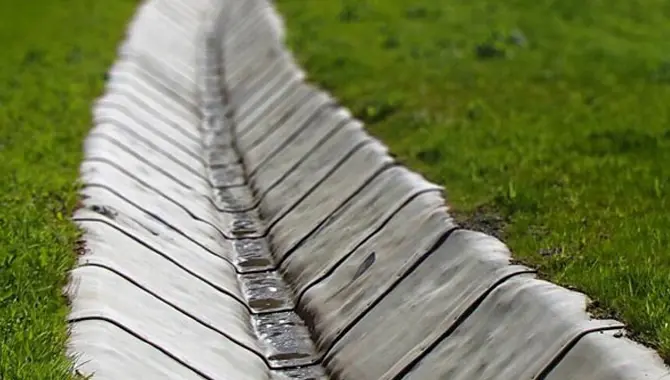

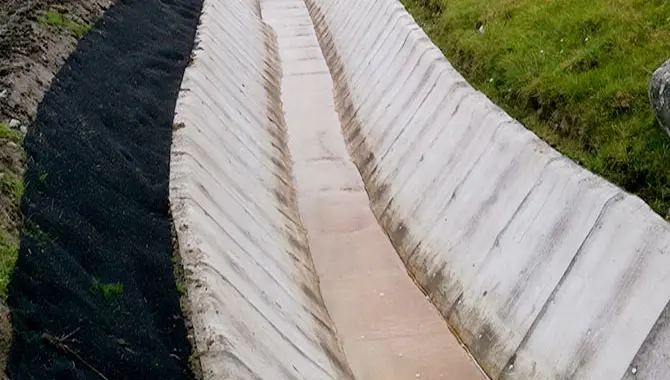

Canal Lining
Cement Canvas Concrete Fabric can be used to provide a hard-wearing erosion control surface for lining channels for drainage and irrigation. Cement Canvas Concrete Fabric is typically used as an alternative to conventional concrete drainage where vegetated or earth-lined ditches are unsuitable due to high flow rates, containment requirements, or the need to reduce maintenance.
Slope Protection
Cement Canvas Concrete Fabric can be used to provide a hard-wearing erosion control surface to protect slopes from environmental degradation. Cement Canvas Concrete Fabric is typically used to replace shotcrete where vegetated slopes are unsuitable due to ground water, arid climate or poor soil conditions.

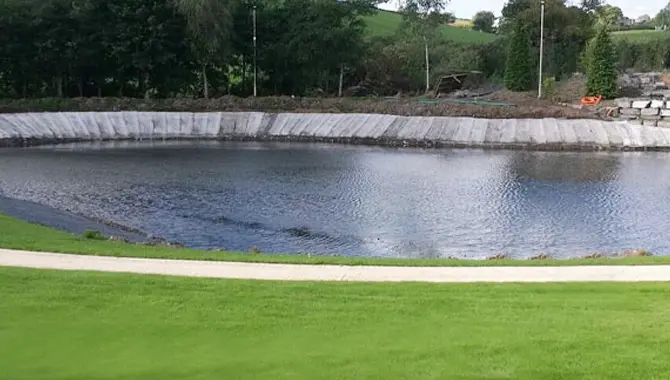

Berm Lining
Cement Canvas Concrete Fabric can be used to provide hard armor capping of secondary containment berm around petrochemical tank farms, munitions depots, and flood defenses. Cement Canvas Concrete Fabric is typically used to protect the bund from environmental degradation and animal damage, improve impermeability, and prevent weed growth.
Concrete Remediation
Cement Canvas Concrete Fabric can be used to reline concrete infrastructure which has become cracked and damaged and requires remediation. Cement Canvas Concrete Fabric is used to extend the life of existing infrastructure, reduce leakage and improve flow characteristics. Cement Canvas Concrete Fabric can be used as an alternative to rebuilding or where lining with a flexible membrane is unsuitable due to the flow conditions or durability concerns.
Culvert Lining
Cement Canvas Concrete Fabric can be used to reline steel and concrete culverts that have degraded due to scour and corrosion. Cement Canvas Concrete Fabric is used to extend the life of culverts and provide a hard-wearing erosion control layer with improved impermeability and flow characteristics. Cement Canvas Concrete Fabric can be used as an alternative to relining with bitumen, GRP, polyurethane, or sprayed concrete.
Weed Suppression
Cement Canvas Concrete Fabric can be used to provide long-term weed growth prevention in areas where maintenance is complex such as around sensitive infrastructure or in remote locations. Cement Canvas Concrete Fabric is typically used as a replacement for precast concrete slabs where conventional geotextiles do not provide sufficient durability.
Advantages of Cement Canvas Concrete Fabric
— Rapid-the material can be hydrated by either spraying it or fully immersing it in water. Once hydrated, it remains workable for 2 hours and hardens to 80% of its final strength within 24 hours. These times can be reduced by adding accelerants into the dry mixture at the point of manufacture;

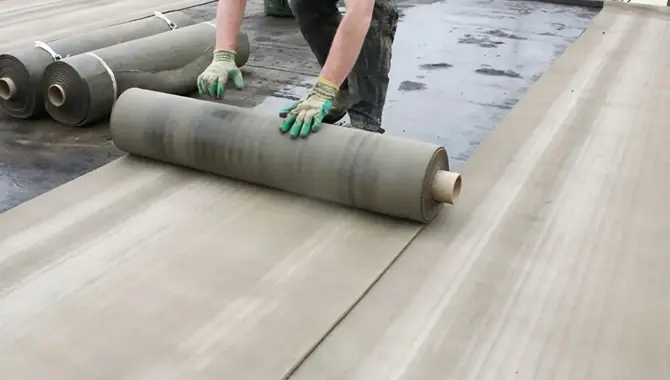

— Easy to use-dry Cement Canvas Concrete Fabric can be cut or tailored using simple hand tools such as utility knives. The PVC side can be supplied with an adhesive backing and the fibrous side bonds well to concrete or brick surfaces when set. It can be easily repaired or upgraded using existing cement products;
— Flexible-Cement Canvas Concrete Fabric can be easily nailed through before setting. It has good drape characteristics, allowing it to take the shape of complex surfaces including those with double curvature;
— Strong-the fiber reinforcement acts to prevent cracking, absorbs energy from impacts, and provides a stable failure mode;
— Fireproof-Cement Canvas Concrete Fabric is a ceramic-based material and will not burn;
— Waterproof-the PVC backing on one surface ensures that Concrete Cloth is completely waterproof;
— Adaptable-Cement Canvas Concrete Fabric is currently supplied on 1.2 m (4 ft) wide rolls but can be manufactured with a roll width of up to 5 m (16.4 ft). The cloth can be produced in a range of thicknesses from 5 to 20 mm (0.2 to 0.8 in.); and
— Durable-Cement Canvas Concrete Fabric is chemically resistant and will not degrade in ultraviolet light.
— Environmentally Friendly
Cement Canvas Concrete Fabric is a low mass, low carbon technology which uses up to 95% less material than conventional concrete for many applications. It has minimal impact on the local ecology due to its limited alkaline reserve and very low wash rate.
