Product Name :Cement Blanket
Weight :15kg
Length:30m
Width :1-3m
Cement Blanket is a breakthrough material technology, which can use concrete on slopes, water and other hard-to-reach positions without form or mixing, and has lower equipment requirements.
The concrete blanket is a special engineering composite material with three- dimensional structure.
It is made of special cement, aggregate and other cementious materials and three-dimensional fabrics.
It can be widely used in water conservancy, railway, highway, environmental management, slope protection, structural slope protection and other fields.
The main functions are anti-seepage, lining emergency, etc.
Test Item
|
Test Results
|
Test Method
|
||||
1d
|
3d
|
7d
|
28d
|
After Freeze-thaw Cycle
|
||
Flexural Strength
(MPa)
|
7
|
9.8
|
10.7
|
11
|
/
|
GB/T29756-2013
|
|
/
|
10.6
|
JC/T1004-2006
|
|||
Compressive Strength
(MPa)
|
51
|
52.3
|
61.5
|
66.1
|
/
|
GB/T29756-2013
|
|
/
|
69.4
|
JC/T1004-2006
|
|||
|
Average Value:37.1
|
ASTM C109/C109M-16a
|
||||
Tensile Strength
(MPa)
|
Longitudinal: 21.2 Transverse: 18.7
|
ASTM C1185-08
|
||||
Density (kg/m³)
|
1590
|
ASTM C1185-08
|
||||
Impermesbility
(MPa)
|
1.3
|
JG/T70-2009 15
|

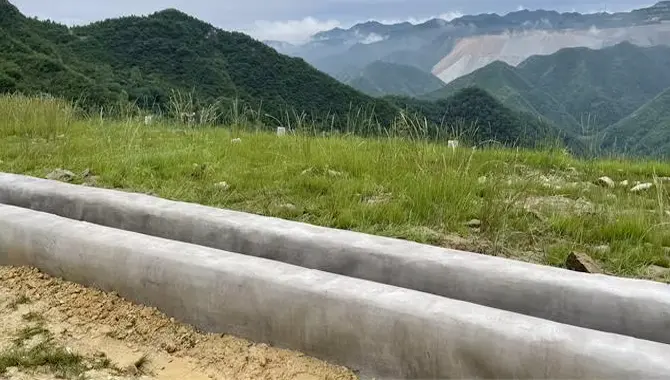

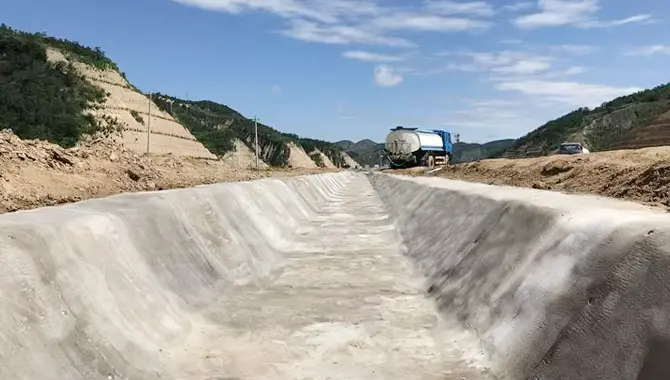

1. Ditch laying

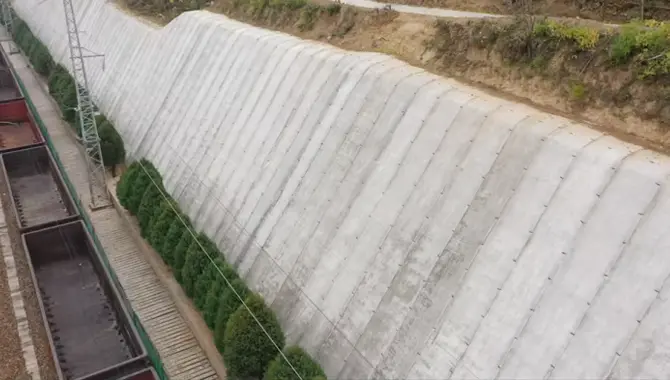

2. Slope protection. Building foundation pit protection
3. Dam reinforcement
4. Reservoir, pond
5. Marine engineering tidal land
6. Sewage black and foul water cofferdam and river treatment
7. Sewage industry sewage related anti-corrosion and anti- erosion landfill leachate pool
8. Sandbag reinforcement, explosion-proof wall reinforcement
9. Light load path
10. Temporary diversion canal
11. Mine roadway support
12. Pipeline protection
13. Roof material
14. Low temperature and construction work
15. Flood control, dam reinforcement
Cement Blanket Concrete Fabric Features
1. Easy construction.
Completed in only 4 steps: Cutting, laying, lapping, hydrating. No need for large machinery. Available in rolls or in bulk easy
for transportation, handling and installation.
2. Fireproof and UV resistant.
Classification of combustion properties of building materials and products: Class A.
UV aging resistance: 500 hours>95% strength retention
3. Eco-friendly and low carbon.
Compared with traditional methods, the amount of gravel is greatly reduced, and the CO2 is reduced by more than 90%.
4. Eco-friendly.
No need to deal with the foundation, adapt to deformation.
5. Labor and time saving.
The efficiency can reach 400 m2 /day, work can be done by only 2 people, the tools are simple, no professional technology is needed. Rapid prototyping in any shape without multiple curing.
6. Strong and sturdy.
Compressive/reflex strength > C 30 concrete. Durable for 50 years.
7. Low cost.
Reduce labor costs and appliance costs. No cracking, settlement and dislocation.
